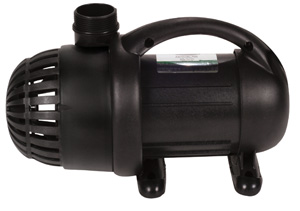

AquaSurge™ Pumps are ideal for use as a high flow pump. The unique design allows the pump to be used vertically or horizontally. The asynchronous motor design ensures the impeller spins in only one direction; maximizing performance, reliability, and minimizing electrical consumption.

Aquasurge2000

Aquasurge3000

Aquasurge 4000

• Comes complete with a threaded coupler, 90 degree elbow and 20' power cord. Low electrical cost. Fish safe - uses no oil. 1 1/2" discharge.

Aquasurge 5000

• Comes complete with a threaded coupler, 90 degree elbow and 20' power cord. Low electrical cost. Fish safe - uses no oil. 1 1/2" discharge.

Aquasurge 7000

• Comes complete with a threaded coupler, 90 degree elbow and 20' power cord. Low electrical cost. Fish safe - uses no oil. 2" discharge.

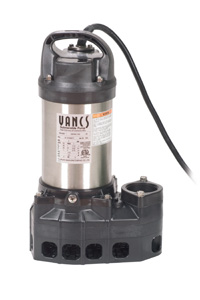

Tsurumi pumps are world-renowned for their quality, dependability and performance. This line of pumps has been designed to be hydraulically "dialed" into the typical lower head water garden applications. This helps ensure that the pump is performing in its ideal operating range resulting in less vibration and wear and tear on the pump, ultimately resulting in longer pump life.

TSURUMI 3PN PUMP #50 PN 2.25S

• 3630 GPH at 5 ft. of head, Max. head height 30 ft., 2" Discharge, 20 ft. cord length, 479 watts.

TSURUMI 4PN PUMP#50PN2.4S-61

• 4740 GPH at 5 ft. of head, Max. head height 44 ft., 2" Discharge, 20 ft. cord length, 655 watts.

TSURUMI PUMP 5PL (HORIZONTAL)

• 5000 GPH at 5 ft. of head, Max. head height 22 ft., 2" Discharge, 20' ft. cord length, 660 watts.

TSURUMI PUMP 8PN #50PN2.75S-61

• 5520 GPH at 5 ft. of head, Max. head height 56 ft., 2" Discharge, 20 ft. cord length, 924 watts.

TSURUMI PUMP 9PL (HORIZONTAL)

• 6800 GPH at 5 ft. of head, Max. head height 35 ft., 2" Discharge, 20' ft. cord length, 987 watts.

These pumps are energy efficient and low maintenance. The oil-free pumps have stainless steel construction, along with rubber feet to reduce vibration.

10,600 GPH at 5 ft., Max.height 28 ft., 3" Discharge, 20 ft. cord length, 1240 watts.

Ideal for use in waterfall and stream applications, these powerful direct-drive pumps feature a unique dual-discharge design for operation of two water features simultaneously. The pumps are extremely versatile, able to be used vertically or horizontally. Corrosion-resistant body designed for non-potable submersible use. Includes two 1-1/4" MNPT x 1" barbed elbow adaptor and a 1-1/4" MNPT discharge cap. Maximum pumping height of 20'. 1-1/4" FNPT discharge and 1-1/4" MNPT discharge cap.

• WG-65 Pump: Maximum flow rate of 1,900 gph.
• WG-95 Pump: Maximum flow rate of 4,280 gph

This durable hose can be buried under the soil without fear of the hose being crushed. Use a pvc primer and glue to glue fittings on the hose. The hose comes in a variety of lengths, from 25' to 100' long.

Hose Sizes:

• 1"
• 1.25"
• 1.5"
• 2"
• 3"

A check valve assembly is needed to connect your pond pump to the pond plumbing. Aquascape's dual union check valve has a removable connection underneath the check valve which allows you to disconnect the pumnp and plumbing without draining the weater in your Biofalls biofilter.

Choose from a selection of Check Valves to figure out which assembly meets your needs.

• 2" Check Valve Assembly
• 3" Check Valve Assembly
• Check Valve Conversion kits
• Check Valve Aquasurge Adapter kit
